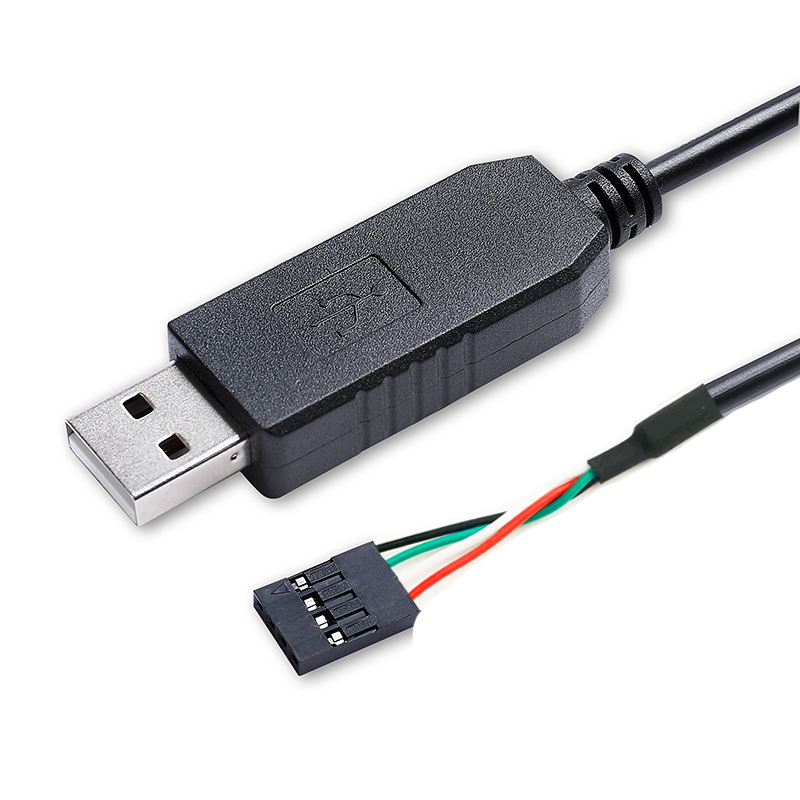

Aruba USB Console Cable With CP2102 Chip for Aruba Wirelss Access Point AP-207 AP-304/305 AP-314/315

Aruba USB Console Cable With CP2102 Chip for Aruba Wirelss Access Point AP-207 AP-304/305 AP-314/315

98.00
38.00
Length：
Color：
OEM/ODM：
Conductor：
Jacket Material：
Supply of goods：


Aruba USB Console Cable With CP2102 Chip for Aruba Wirelss Access Point AP-207 AP-304/305 AP-314/315

Description

Material: PVC outer jacket

Cable: 28AWG*4C, OD4.0mm OFC Bare Copper

Cable length:  1M/1.8M optional, other length can be customized

Connector A: USB 2.0 type A male

Connector B: DuPont 4Pin

Chipset: Silicon Labs CP2102

Connector: Nickel plated shell, gold plated contacts

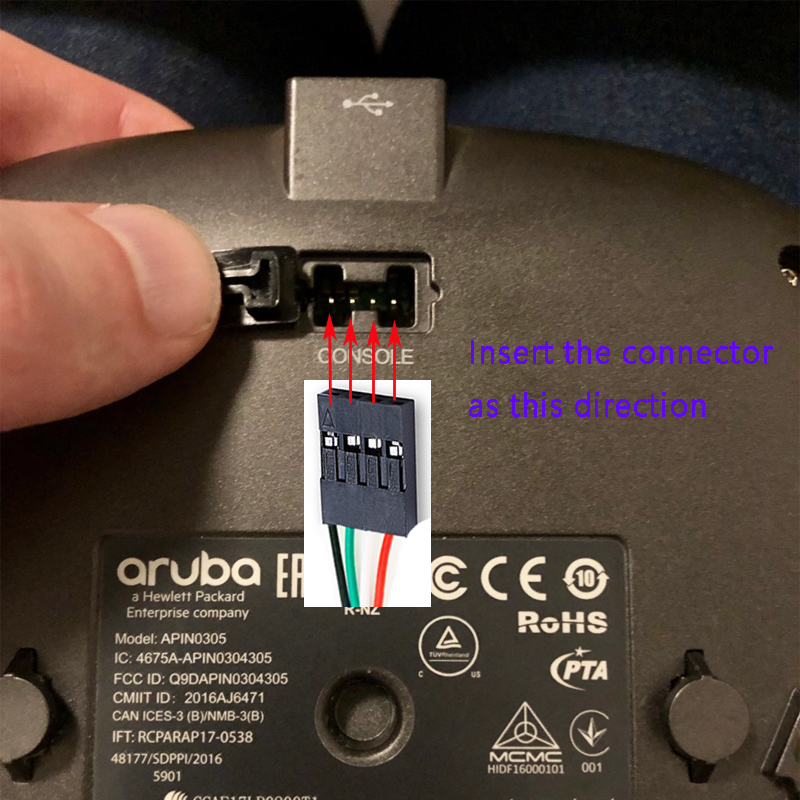

Application: use for Aruba AP-207, AP-304/305, AP-314/315

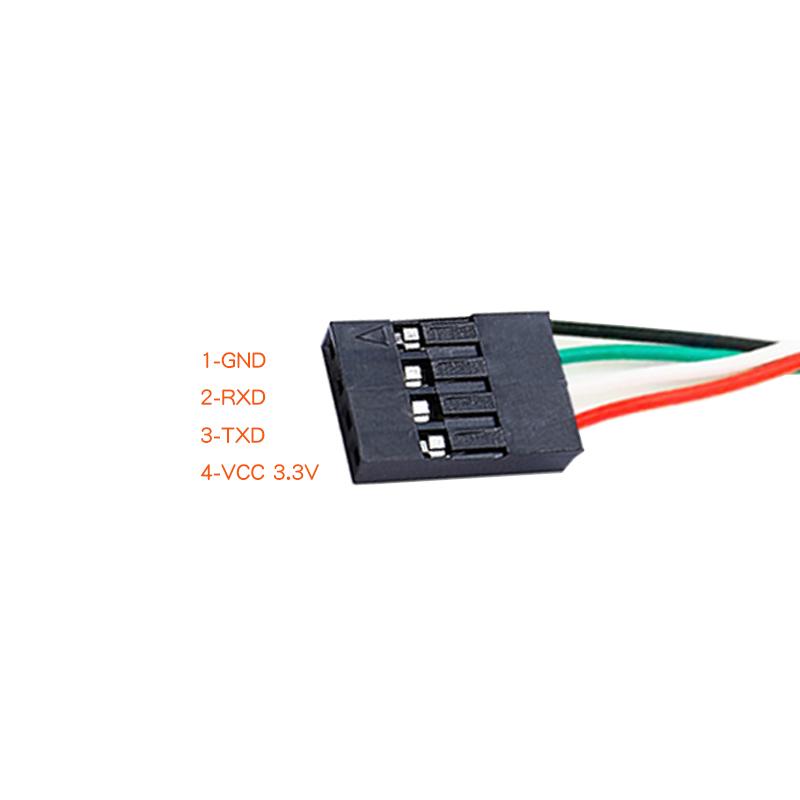

Pinout : 1-GND, 2-RXD. 3-TXD, 4-VCC 3.3V


USB TTL Level Serial UART Converter Console Cable for Aruba AP-207 AP-304/305 AP-314/315
Compatible with Aruba AP-CBL-SER
This cable is a USB to TTL level serial UART converter cables incorporating Silicon Labs CP2102 USB to Serial UART interface IC device which handles all the USB signalling and protocols. It is designed for use with the Raspberry Pi (RPi), an ultra-low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART – which provides much more detail of what’s happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start-up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC.
