FT232 USB TO 4P4C RJ9 Serial Converter Telescope Cable

FT232 USB TO 4P4C RJ9 Serial Converter Telescope Cable

98.00
38.00
Length：
Color：
OEM/ODM：
Conductor：
Jacket Material：
Supply of goods：
Applied：


FTDI USB RS232 4P4C RJ9 Adapter Serial Converter 6FT 16.4FT Ioptron Telescope Cable for IEQ30pro ZEQ25 CEM60 Smarteq Pro

Description

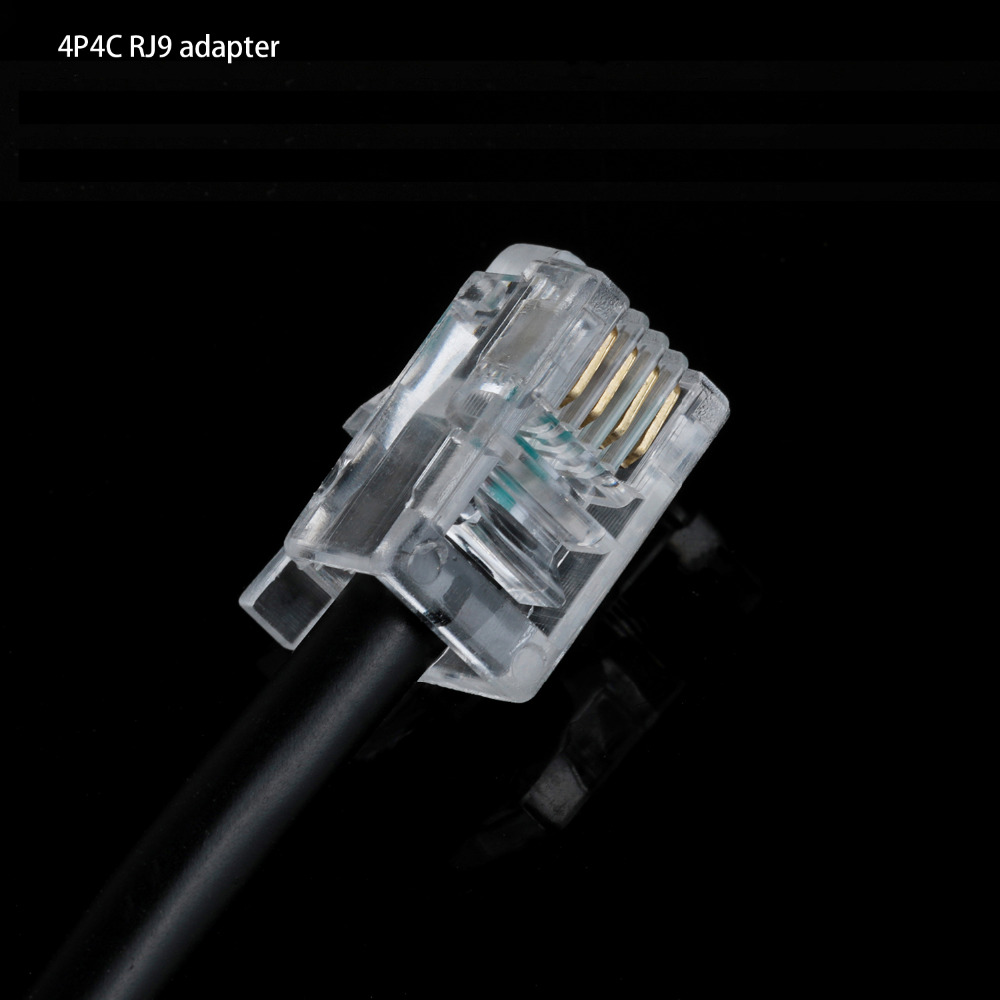

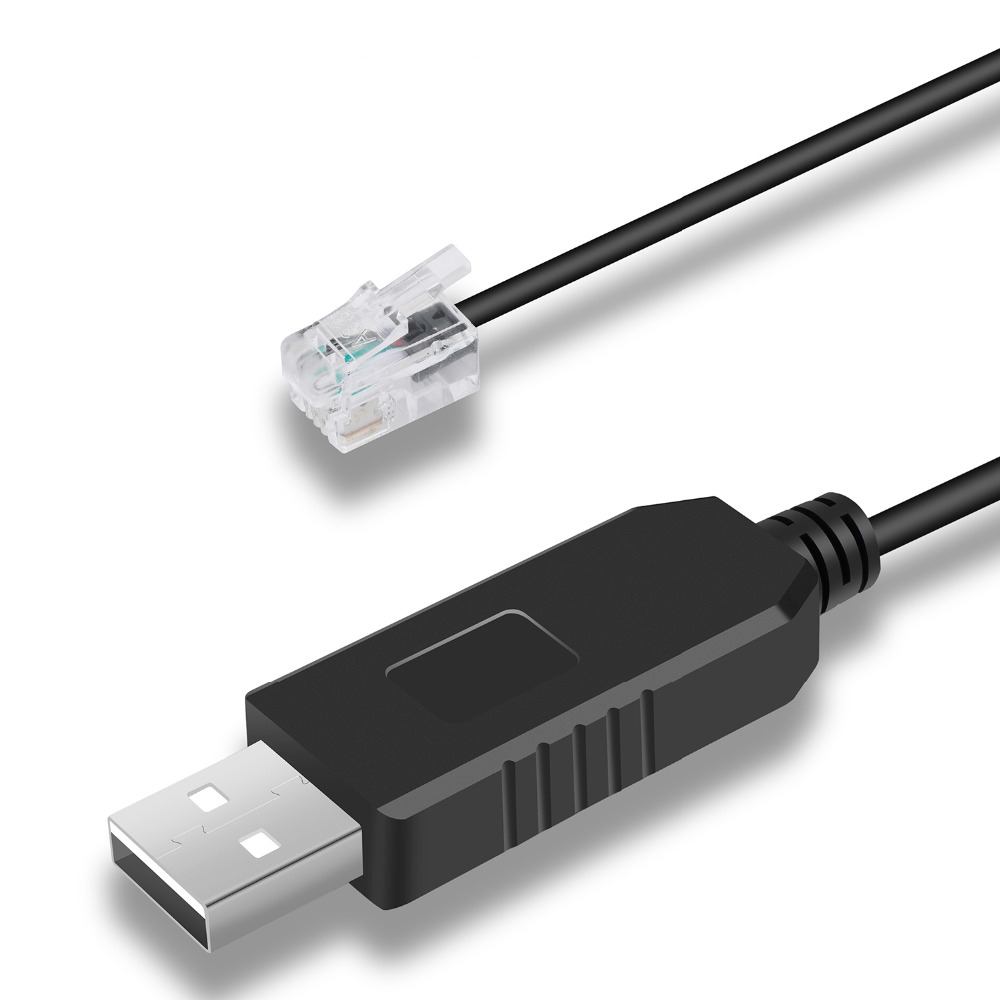

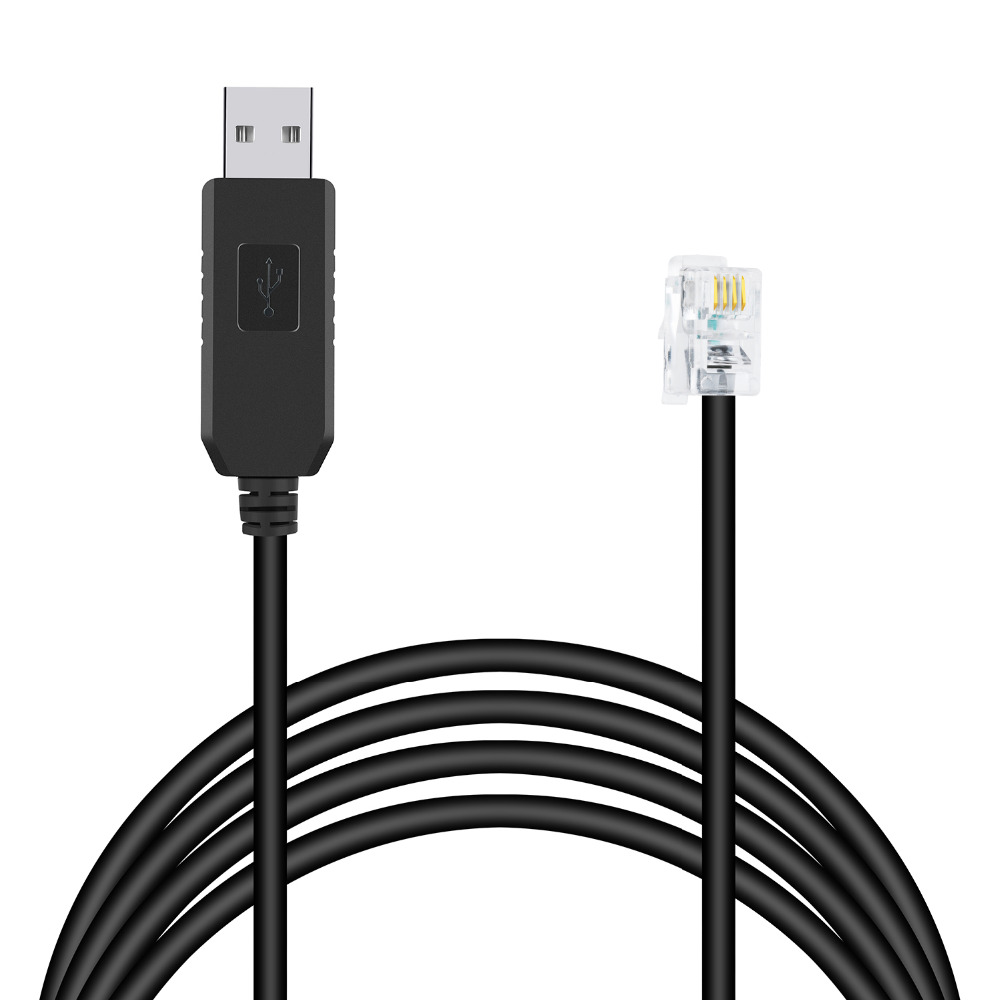

Ioptron Telescope Cable FTDI USB RS232 to 4P4C RJ9 Adapter Serial Converter Adapter Cable Telescope PC Cable

DIY Ioptron Ieq30pro Telescope to PC Cable

USB RS232 to 4P4C RJ10

Compatible for Ioptron Telescope IEQ30pro ZEQ25 CEM60 Smarteq Pro

Cable length:1.8mtr, 5mtr in length optional

Building the cable is quite simple and only requires soldering 3 joints and placing 3 wires into a RJ9 plug and crimping the punch downs to secure the cable

Most of our readers here will be surprised to learn that I am an avid amateur astronomer. I spend every chance I get under the stars taking in the amazing views that can be seen from my 10" Meade LXD-55 Schmidt Newtonian. With my background in photography, it should come as no surprise that I have shifted more into astrophotography than visual observing. My imaging sessions are usually conducted with two of my best friends at a private observatory owned by one of them . The observatory is nice but it is located about 35-40 minutes from me and thus I do not get out there as much as I would like to. So over the last couple of months I have been gearing up my scope for imaging. One of the first task I had to tackle was building a cable that would allow me to control my telescope from my PC, and that is what today's tutorial is all about.

  • There are several reasons one would want to control their telescope with a PC:
    It is faster than using the hand controller.
    It gives you a visual aid when searching for something hard to find.
    If you find something unknown, the planetarium software will be able to identify it.
    It is a necessity if you plan on imaging anything for longer than a single quick exposure.
    It's wicked cool!

    Building the cable is quite simple and only requires soldering 3 joints and placing 3 wires into a RJ10 plug and crimping the punch downs to secure the cable. The schematic below is what we will be following. I found this diagram online several months ago and do not remember where I found it. If it is yours, please contact me so I can add attribution. I have edited it to display the colors of the wires we will be using.

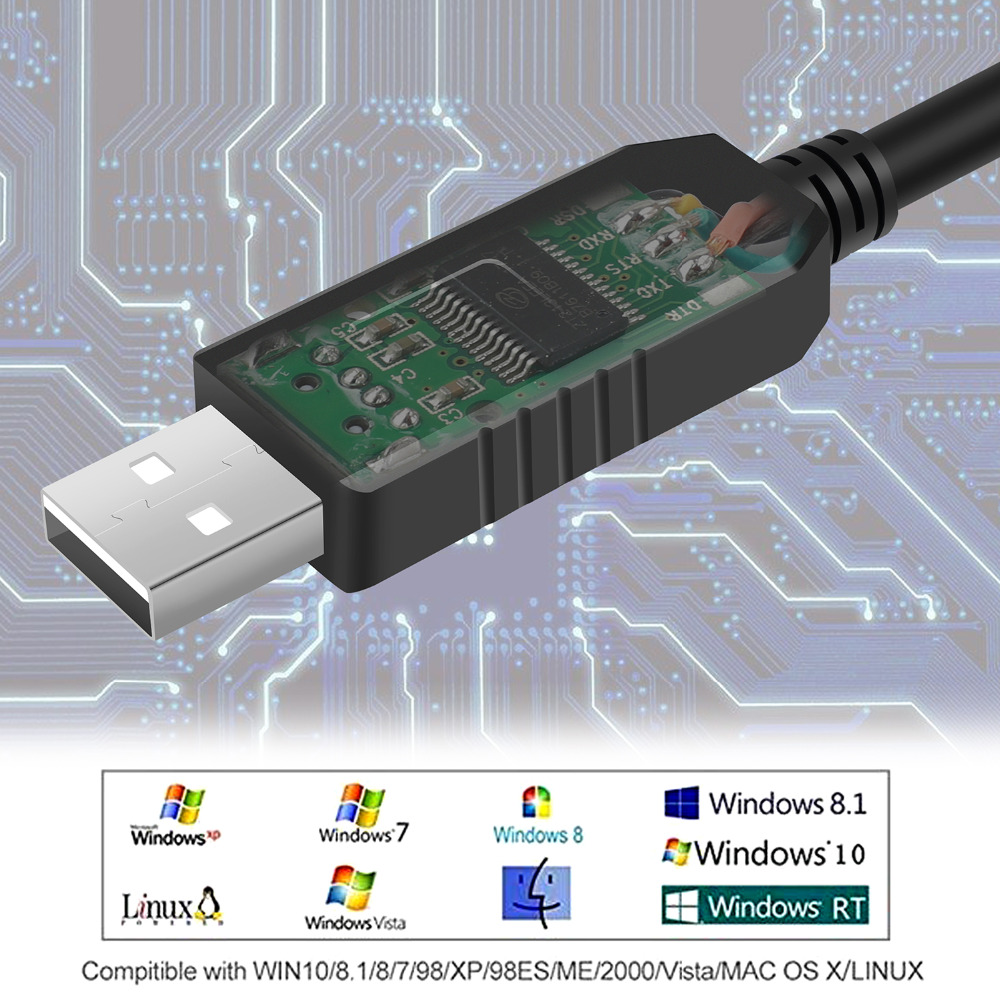

About FT231X

   Single chip USB to asynchronous serial data transfer interface.
   Entire USB protocol handled on the chip. No USB specific firmware programming required.
   Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
   Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
   Data transfer rates from 300 baud to 3 Mbaud.
   512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
   FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
   Configurable CBUS I/O pins.
   Transmit and receive LED drive signals.
   UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
   Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
   Battery Charger Detection. May be used by mobile devices to detect the presence of a charger on the USB port to enable higher current / faster charging of batteries.
   Device supplied pre-programmed with unique USB serial number.
   Supports bus powered, self powered and high-power bus powered USB configurations.
   Integrated +3.3V level converter for USB I/O.
   True 3.3V CMOS drive output and TTL input.
       (operates down to 1V8 with external pull ups and is also 5V tolerant)
   Configurable I/O pin output drive strength.
   Integrated power-on-reset circuit.
   UART signal inversion option.
   Internal 3.3V/1.8V LDO regulators
   Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
   Low USB bandwidth consumption.
   UHCI/OHCI/EHCI host controller compatible.
   USB 2.0 Full Speed compatible.
   Extended operating temperature range: -40°C to 85°C
   Available in compact Pb-free 20 Pin SSOP and QFN packages (both RoHS compliant).

Typical application

   USB to RS232/RS422/RS485 Converters
   Upgrading Legacy Peripherals to USB
   Cellular and Cordless Phone USB data transfer cables and interfaces
   Interfacing MCU/PLD/FPGA based designs to USB
   USB Audio and Low Bandwidth Video data transfer
   PDA to USB data transfer
   USB Smart Card Readers
   USB Instrumentation
   USB Industrial Control
   USB MP3 Player Interface
   USB FLASH Card Reader and Writers
   Set Top Box PC - USB interface
   USB Digital Camera Interface
   USB Hardware Modems
   USB Wireless Modems
   USB Bar Code Readers
   Dedicated Charger Port (DCP) detection enabling battery charging at higher current for faster charge times.

RS232 specifications, introduction
Communication as defined in the RS232 standard is an asynchronous serial communication method. The word serial means, that the information is sent one bit at a time. Asynchronous tells us that the information is not sent in predefined time slots. Data transfer can start at any given time and it is the task of the receiver to detect when a message starts and ends. Asynchronous communication has some advantages and disadvantages which are both discussed in the next paragraph.
RS232 bit streams
The RS232 standard describes a communication method where information is sent bit by bit on a physical channel. The information must be broken up in data words. The length of a data word is variable. On PC's a length between 5 and 8 bits can be selected. This length is the netto information length of each word. For proper transfer additional bits are added for synchronisation and error checking purposes. It is important, that the transmitter and receiver use the same number of bits. Otherwise, the data word may be misinterpreted, or not recognized at all.

With synchronous communication, a clock or trigger signal must be present which indicates the beginning of each transfer. The absence of a clock signal makes an asynchronous communication channel cheaper to operate. Less lines are necessary in the cable. A disadvantage is, that the receiver can start at the wrong moment receiving the information. Resynchronization is then needed which costs time. All data received in the resynchronization period is lost. Another disadvantage is that extra bits are needed in the data stream to indicate the start and end of useful information. These extra bits take up bandwidth.

Data bits are sent with a predefined frequency, the baud rate. Both the transmitter and receiver must be programmed to use the same bit frequency. After the first bit is received, the receiver calculates at which moments the other data bits will be received. It will check the line voltage levels at those moments.

With RS232, the line voltage level can have two states. The on state is also known as mark, the off state as space. No other line states are possible. When the line is idle, it is kept in the mark state.

Start bit

RS232 defines an asynchronous type of communication. This means, that sending of a data word can start on each moment. If starting at each moment is possible, this can pose some problems for the receiver to know which is the first bit to receive. To overcome this problem, each data word is started with an attention bit. This attention bit, also known as the start bit, is always identified by the space line level. Because the line is in mark state when idle, the start bit is easily recognized by the receiver.

Data bits

Directly following the start bit, the data bits are sent. A bit value 1 causes the line to go in mark state, the bit value 0 is represented by a space. The least significant bit is always the first bit sent.

Parity bit

For error detecting purposes, it is possible to add an extra bit to the data word automatically. The transmitter calculates the value of the bit depending on the information sent. The receiver performs the same calculation and checks if the actual parity bit value corresponds to the calculated value. This is further discussed in another paragraph.

Stop bits

Suppose that the receiver has missed the start bit because of noise on the transmission line. It started on the first following data bit with a space value. This causes garbled date to reach the receiver. A mechanism must be present to resynchronize the communication. To do this, framing is introduced. Framing means, that all the data bits and parity bit are contained in a frame of start and stop bits. The period of time lying between the start and stop bits is a constant defined by the baud rate and number of data and parity bits. The start bit has always space value, the stop bit always mark value. If the receiver detects a value other than mark when the stop bit should be present on the line, it knows that there is a synchronization failure. This causes a framing error condition in the receiving UART. The device then tries to resynchronize on new incomming bits.

For resynchronizing, the receiver scans the incomming data for valid start and stop bit pairs. This works, as long as there is enough variation in the bit patterns of the data words. If data value zero is sent repeatedly, resynchronization is not possible for example.

The stop bit identifying the end of a data frame can have different lengths. Actually, it is not a real bit but a minimum period of time the line must be idle (mark state) at the end of each word. On PC's this period can have three lengths: the time equal to 1, 1.5 or 2 bits. 1.5 bits is only used with data words of 5 bits length and 2 only for longer words. A stop bit length of 1 bit is possible for all data word sizes.

RS232 physical properties

The RS232 standard describes a communication method capable of communicating in different environments. This has had its impact on the maximum allowable voltages etc. on the pins. In the original definition, the technical possibilities of that time were taken into account. The maximum baud rate defined for example is 20 kbps. With current devices like the 16550A UART, maximum speeds of 1.5 Mbps are allowed.

Voltages

The signal level of the RS232 pins can have two states. A high bit, or mark state is identified by a negative voltage and a low bit or space state uses a positive value. This might be a bit confusing, because in normal circumstances, high logical values are defined by high voltages also. The voltage limits are shown below.

RS232 voltage values Level    Transmitter
capable (V)    Receiver
capable (V)
Space state (0)    +5 ... +15    +3 ... +25
Mark state (1)    -5 ... -15    -3 ... -25
Undefined    -    -3 ... +3

More information about the voltage levels of RS232 and other serial interfaces can be found in the interface comparison table.

The maximum voltage swing the computer can generate on its port can have influence on the maximum cable length and communication speed that is allowed. Also, if the voltage difference is small, data distortion will occur sooner. For example, my laptop mark's voltage is -9.3 V, compared to -11.5 V on my desktop computer. The laptop has difficulties to communicate with Mitsubishi PLC's in industrial environments with high noise levels where the desktop computer has no data errors at all using the same cable. Thus, even far beyond the minimum voltage levels, 2 volts extra can make a huge difference in communication quality.

Despite the high voltages present, it is not possible to destroy the serial port by short circuiting. Only applying external voltages with high currents may eventually burn out the driver chips. Still then, the UART won't be damaged in most cases.

Maximum cable lengths

Cable length is one of the most discussed items in RS232 world. The standard has a clear answer, the maximum cable length is 50 feet, or the cable length equal to a capacitance of 2500 pF. The latter rule is often forgotten. This means that using a cable with low capacitance allows you to span longer distances without going beyond the limitations of the standard. If for example UTP CAT-5 cable is used with a typical capacitance of 17 pF/ft, the maximum allowed cable length is 147 feet.

The cable length mentioned in the standard allows maximum communication speed to occur. If speed is reduced by a factor 2 or 4, the maximum length increases dramatically. Texas Instruments has done some practical experiments years ago at different baud rates to test the maximum allowed cable lengths. Keep in mind, that the RS232 standard was originally developed for 20 kbps. By halving the maximum communication speed, the allowed cable length increases a factor ten!

RS232 cable length according to Texas Instruments Baud rate    Maximum cable length (ft)
19200    50
9600    500
4800    1000
2400    3000

Error detection

One way of detecting errors is already discussed. It is the frame detection mechanism which is used to test if the incomming bits were properly surrounded by a start and stop bit pair. For further error checking, a parity bit can be used. The use of this bit is however not mandatory. If the existence of wrong bits is rare (when communicating with an internal modem for example) or if a higher level protocol is used for error detection and correction (Z-modem, RAS, etc) communication speed can be increased by not using the parity feature present on the UART.

Parity is a simple way to encode a data word to have a mechanism to detect an error in the information. The method used with serial communications adds one bit to each data word. The value of this bit depends on the value of the data word. It is necessary that both the transmitter and receiver use the same algorithm to calculate the value of the parity bit. Otherwise, the receiver may detect errors which are not present.

Even parity

Basically, the parity bit can be calculated in two ways. When even parity is used, the number of information bits sent will always contain an even number of logical 1's. If the number of high data bits is odd, a high value parity bit is added, otherwise a low bit will be used.

Odd parity

The odd parity system is quite similar to the even parity system, but in this situation, the number of high bits will always be odd.

Disadvantages of the parity system

The parity system using one bit for each data word is not capable of finding all errors. Only errors which cause an odd number of bits to flip will be detected. The second problem is, that there is no way to know which bit is false. If necessary, a higher level protocol is necessary to inform the sender that this information must be resent. Therefore, on noisy lines, often other detection systems are used to assure that the sent information is received correctly. These systems mostly do not operate on single data words, but on groups of words
