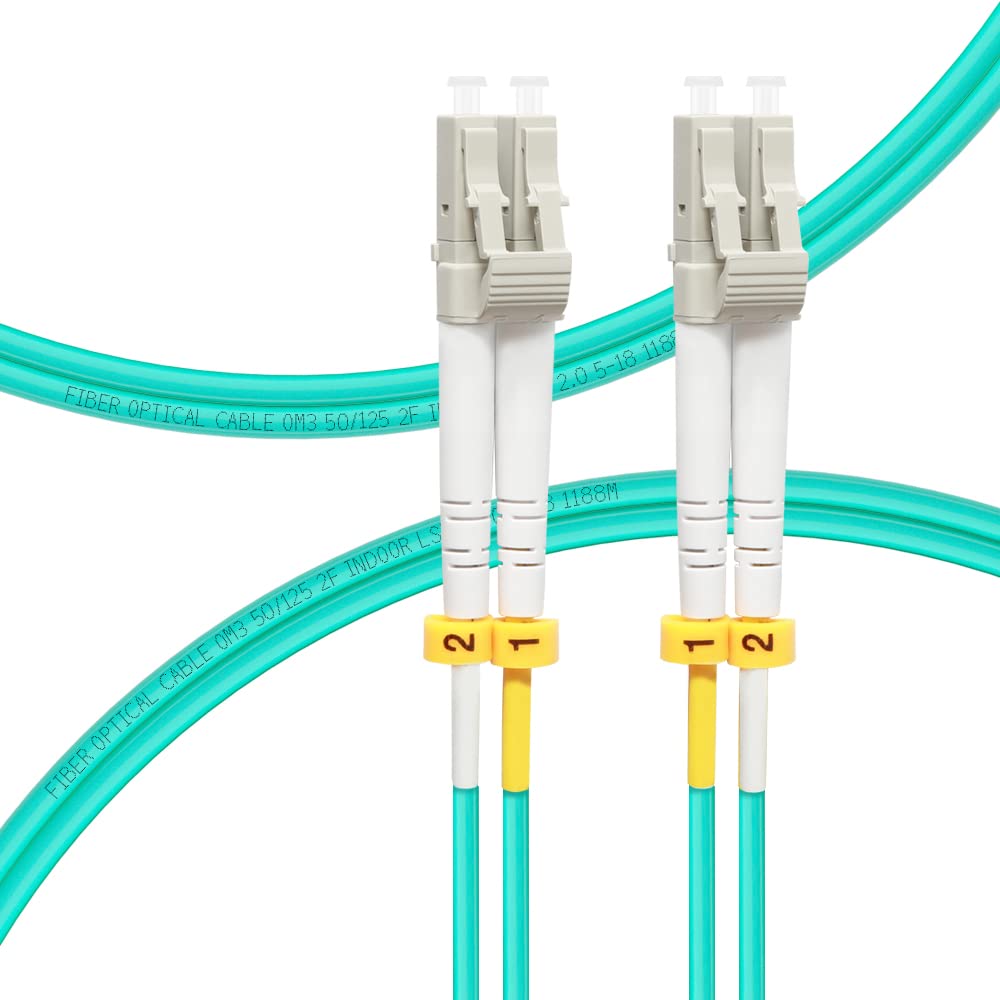

Fiber Patch Cable 1M/3ft OM3, LC to LC Fiber Optic Cable Cord LSZH 10GB

• 1M(3ft), OM3 LC-LC Fiber Optic Patch Cable Multimode 10Gb is designed for high density applications in gigabit ethernet, fiber channel, local area networks, data center, premise installation, wide area networks, commercial and so on, ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 12G Ethernet connections.

• Maximum Transmission Distance - 1Gb Ethernet Distance of 550Meters at 850nm; 10Gb Ethernet Distance of 300Meters at 850nm; 40Gb Ethernet Distance of 300Meters at 850/nm; 100Gb Ethernet Distance of 200Meters at 850nm. Bandwidth is 2000 MHz·km @850nm.

• 7.5mm Minimum Bend Radius - High Rated 50/125um Fiber and Cladding, which is Insensitive to bending, easy peeling, easy welding, ensures small optical loss and stable transmission (insertion loss≤0.3dB, return loss ≥30dB.), Ideal for SAN network cabinets that require 20 or more bends in the cabinet or high-density installations with cables crammed into an extremely small footprint.

• Construction Design - LSZH environmentally friendly Jacket; Adjustable connector clips allow individual fiber access; Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 provide quick identification of Tx and Rx when installing, testing, and troubleshooting equipment connections; UPC polish and Japan made zirconia ceramic ferrules with high return loss, low insertion loss, and low attenuation features, provide precise alignment to ensure the signal integrity.

•

•

•

•
